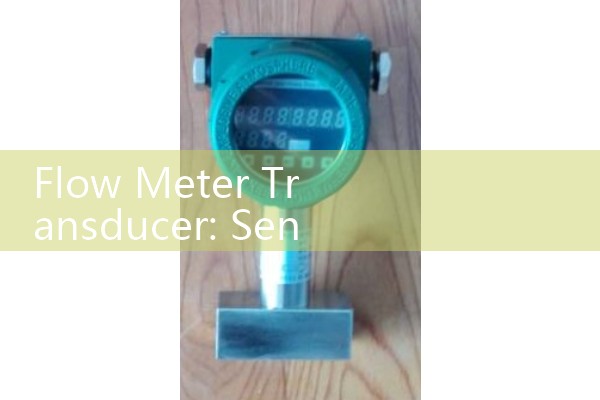

Flow Meter Transducer: Sensor Signal Transmitters Explained
Quick Answer
A flow meter transducer converts raw sensor signals into standardized electrical outputs your control system can read. The most common outputs in industrial plants are 4-20 mA HART, pulse, and Modbus RS485. Choose a transmitter that matches both the sensor type and the input card on your PLC or DCS to avoid zero drift and signal dropouts.
How Flow Meter Sensors Generate Raw Signals
Every flow meter starts at the sensor. An electromagnetic flow tube generates a tiny AC voltage, typically between 0.1 and 1 mV. Vortex meters use a piezoelectric crystal that flexes with each vortex shed and produces a weak sine wave, often only a few millivolts peak to peak. Coriolis mass flow sensors output a low-level phase shift from two vibrating tubes. Turbine and positive displacement meters give a raw magnetic pickup frequency. These signals are not ready for the field. They need amplification, filtering, and conversion inside a signal transmitter.
The Role of the Transmitter (Signal Conditioner)
Here is the thing. A raw sensor signal is noisy and nonlinear. The transmitter takes that fragile signal, amplifies it, removes process noise, and linearizes the output against the actual flow rate. For an electromagnetic flowmeter, the converter board inside the transmitter drives the coil current, senses the electrode voltage, and compensates for conductive fluid changes. For a vortex meter, the signal conditioner band-pass filters the raw sine wave, triggers a Schmitt comparator, and spits out a clean square wave pulse. Our SV-2000 vortex transmitter does exactly that. It works with DN15 to DN300 pipes and outputs a 5 V square wave that standard counters can totalize without extra interface modules.
Common Output Signals and What They Mean for Your System
Most industrial users run 4-20 mA with HART on top. The 4-20 mA loop gives you real-time flow rate, and the HART digital signal lets you read totalizer values, diagnostic data, and sensor health without opening the enclosure. Pulse outputs are common for batching and totalizing. A magnetic flowmeter transmitter we sell for wastewater often ships with one 4-20 mA, one pulse, and one RS485 Modbus channel all active at the same time. In a desalination plant in Oman they took the pulse output to a local sampler counter and sent the Modbus register directly to a SCADA via RS485. That setup kept signal loss zero even at 200 meters cable length. Modbus RTU on RS485 is our preference for long runs, especially when you need multiple variables like flow, temperature, and conductivity from one magnetic flow sensor.
Real-World Signal Problems We Have Fixed
In practice, most signal failures come from three places: ground loops, incorrect cable shielding, and mismatched load resistance. A paint manufacturer in Thailand called us last year. Their electromagnetic flowmeter on a resin line showed random 0 mA drops every few hours. The issue was a 250-ohm HART resistor that was too low for the loop supply voltage. We had them measure the loop voltage at the transmitter terminals and swap to a 500-ohm resistor. The problem disappeared. Another case: a dairy in New Zealand replaced a vortex flowmeter sensor but kept the old transmitter. The new sensor output was 15 mV peak, while the old transmitter front-end expected 30 mV minimum. The pulse output flickered. We sent them a fresh SV-2000 board with adjustable gain. After setting the gain to match the weaker sensor, the pulse became stable even at 2 kg/h steam flow.
Matching Transmitter to Sensor — Tips for Engineers

Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. We will recommend the right transmitter model and pre-configure the span before shipping. No generic “contact us” message. We need those four numbers to give you a real quote.
FAQ on Flow Meter Transducers and Signal Transmitters
Q: What is the difference between a flow sensor and a flow transmitter?
A: The sensor is the primary element that touches the fluid and generates a raw physical signal. The transmitter is the electronic housing that powers the sensor, conditions the signal, and outputs a standard analog or digital signal like 4-20 mA HART. You can replace a transmitter without changing the sensor body if the calibration data matches.
Q: Can I mix sensor brands with different transmitters?
A: It is possible but risky. You need the sensor K-factor, excitation voltage, coil resistance, or pickup sensitivity to match the transmitter front-end. If you give us the original sensor serial plate data, we can often configure a Silver Instruments transmitter to work with an older third-party flow tube.
Q: Which signal is best for long distance, 4-20 mA or pulse?
A: For distances over 100 meters in an electrically noisy plant, 4-20 mA loop is more immune than high-frequency pulse. Use a twisted shielded pair and keep the loop load resistance within the transmitter maximum. Modbus RS485 is also good for long runs, up to 1,200 meters at low baud rates.
Q: How do I set the span on a HART transmitter?
A: Connect a HART communicator or use the local push buttons on the transmitter. Set the 4 mA point to your minimum expected flow, and the 20 mA point to the maximum flow. Always set the LRV (Lower Range Value) and URV (Upper Range Value) in the actual engineering units. A typical water line we configure is 0 m3/h for 4 mA and 100 m3/h for 20 mA on a DN100 electromagnetic meter.
Q: Do Silver Instruments transmitters come pre-calibrated?
A: Yes. Every transmitter leaves our Nanjing workshop with a factory calibration certificate matched to the sensor serial number. For Coriolis meters we do a 5-point water calibration. For mag meters we run a wet-calibration at the specified pipe size. Just tell us the fluid, density or conductivity range, and any special requirement like ATEX Zone 1 compliance.
