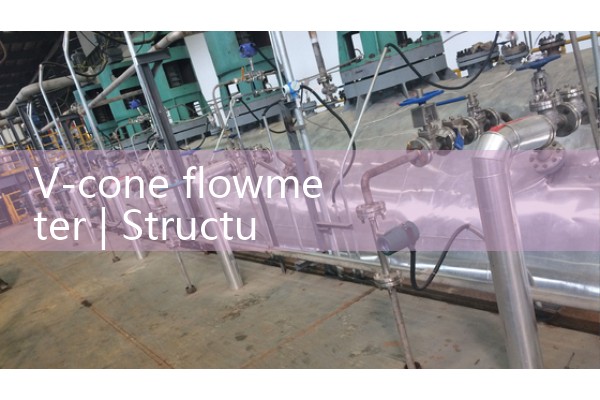

V-cone flowmeter | Structure of V-cone flowmeter

『V-cone flowmeter』Related information(clamp on meter|electromagnetic meter|venturi meterrotameter|orifice meter|ultrasonic flow meter|mass flow meter|coriolis mass flow meter|coriolis flow meter|magnetic flow meter|magmeter flow meter|magflow flow meter|mag meter flow meter|electromagnetic flow meter|vortex flow meter|turbine flow meter|thermal mass flow meter|thermal flow meter|rotameter flow meter)

1. Technical specifications of V-cone flowmeter

▲ High precision: ± 0.075% ▲ High stability: better than 0.1% fs/year ▲ High static pressure: 40mpa ▲ Continuous operation for 5 years without calibration ▲ Negligible temperature and static pressure effects ▲ Anti four hand high overpressure

1. It has good accuracy (≤ 0.5%) and repeatability (≤ 0.1%).

2、 It has a wide range ratio (10:1-15:1)

3. It has self rectification function and only requires a very short straight pipe section (front 1-3D and back 0-1D).

4、 Self cleaning function, capable of detecting dirty and easily scaling fluids, suitable for media with high impurities such as blast furnace gas.

5、 Self protection function, key parts of the throttle component do not wear out, and can maintain long-term stable operation.

6、 Resistant to high temperature, high pressure, corrosion, and vibration.

7、 The types of measurable fluids are very wide (liquid, gas, steam), and the flow measurement range is wide (small flow to large flow), suitable for pipelines ranging from DN15 to DN3000.

8、 The structure design of the flowmeter is a fluid sweep type structure, which cannot intercept any gas, liquid or solid pollutants carried in the fluid. Non state flow meters are often suitable for flow measurement of dirty fluids, such as coke oven gas, wet gas, etc. 9. No movable parts 10. When the fluid flows through an inner cone with a special profile, a boundary layer will be formed around it and the fluid will be guided away from the edge of the cone tail, thereby reducing the possibility of wear. 1

1、 Measure steam and hot water at the heat exchange station without the need for a straight sail or buried pipe se

2. What is a V-cone flowmeter? What are the advantages of the V-cone flowmeter? The V-cone flowmeter is mainly used to measure the flow rate of liquids or gases. Its functions include but are not limited to the following: 1. Flow measurement: The V-cone flowmeter can accurately measure the flow rate of fluids. By measuring the pressure difference between the top and bottom, the flow value can be calculated. 2. Process control system: V-cone flowmeter can be used to monitor and control the flow rate of fluids in industrial processes, ensuring stability and consistency in the production process. 3. Energy saving optimization: By measuring the flow rate of fluids, it can help optimize energy consumption, save energy costs, and improve system efficiency. 00:00/00:3470% Shortcut Key Description Space: Play/Pause Esc: Exit Full Screen ↑: Volume Up 10% ↓: Volume Down 10% →: Single Fast Forward 5 seconds ←: Single Fast Forward 5 seconds ←: Video url: Video volume: Video time: Duration: Dropped Frames: Resolution: x [x] Press and hold here to drag and drop and no longer appear. You can reopen the small window in the player settings to play the video. Shortcut Key Description

3. Share: Which flow meter is suitable for measuring biogas?

For measuring biogas, it is recommended to use a V-cone flow meter. The specific analysis is as follows: The core advantage of V-cone flow meter is that it can be used in pipelines. Place a conical thr
