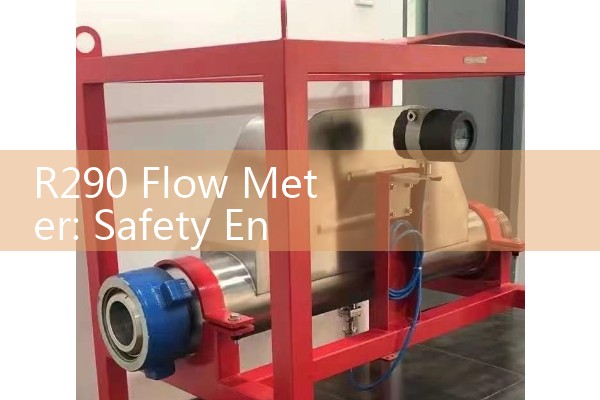

R290 Flow Meter: Safety Enclosures for Propane-Based Commercial Cooling
Quick Answer
R290 (propane) is an A3 flammable refrigerant. Any flow meter used on an R290 commercial cooling system must live inside a certified safety enclosure, usually ATEX Zone 1 or Zone 2. Silver Instruments supplies Coriolis mass flow meters with Ex d ia IIC T4 Gb enclosures, stainless steel wetted parts and 4-20 mA HART output. Send us your pressure in bar, temperature in °C, pipe size in DN and liquid flow range in kg/h to get a specific model and price.
Why Safety Enclosures Are Not Optional Here
Propane leaks can form an explosive atmosphere fast inside a compressor room, a supermarket chiller aisle or a heat pump enclosure. Because R290 has a lower flammability limit of just 2.1% by volume, even a small fitting leak can push a closed space into the ignition zone. For that reason, IEC 60079-10-1 zone classification usually lands at Zone 1 or Zone 2 for the refrigerant circuit. An uncertified general-purpose flow transmitter in this area is a risk that no OEM or end user should carry.
That is why every R290 flow meter housing must carry a legitimate ATEX certificate, an IECEx CoC or a local equivalent such as INMETRO in Brazil or CCoE/PESO in India. Silver Instruments enclosures use flameproof Ex d chambers combined with intrinsically safe Ex ia electronics. The markings we keep on stock read Ex d ia IIC T4 Gb for gas atmosphere. This covers both the liquid line after the receiver and the pump discharge leg where temperature can reach 80 °C or more.
Which Meter Technology Handles Liquid R290 Best
Most commercial cooling applications need to measure liquid propane refrigerant, not vapor. Here is the practical selection engineers make on site. A Coriolis mass flow meter reads mass directly in kg/h. It ignores density shifts, vapor slugs and viscosity changes between 0.1 and 1 cP. A small-bore Coriolis tube, DN06 or DN10, resolves precisely the low flow rates you find in a 30 kW scroll compressor circuit.
We have tried ultrasonic clamp-on meters on these lines. The issue is the thin wall stainless steel tube and occasional two-phase spikes at low evaporator load. The signal drops. Electromagnetic flow meters are non-starters because liquid R290 has near-zero conductivity below 0.005 µS/cm. Thermal mass flow meters work well for gas but cannot handle liquid. So the default recommendation from our application team is always a Coriolis meter with 316L stainless steel tubes and an explosion-proof transmitter housing.
Silver Instruments Enclosure: Build and Certifications
The safety enclosure on our R290-ready model is a cast aluminum alloy box with a heavy wall thickness. It is painted yellow or RAL 7035 grey. The lid closes with a threaded flame path, no bolts. Two M20 x 1.5 cable entries sit at the bottom. We supply certified ATEX/IECEx cable glands if you specify the cable outer diameter during order. Inside, the terminal compartment is segregated from the sensor electronics. The 4-20 mA HART signal exits via a galvanically isolated output stage.
Ambient temperature range is -40 °C to +60 °C. The enclosure carries IP66 and IP67, so it can sit outside a chiller skid in
Real-World Example: A Chiller OEM in Malaysia
Last year a commercial chiller factory in Johor, Malaysia asked us to replace a plastic-body turbine meter on their R290 test bench. The turbine rotor was swelling due to refrigerant-lubricant mix and the plastic housing had zero ATEX rating. We supplied a DN15 Coriolis mass flow meter, model SCM-015, with Ex d ia IIC T4 enclosure. The flow range they needed was 20 to 200 kg/h. Output went to their PLC via 4-20 mA HART and a dry pulse channel for totalising. The unit was calibrated with a synthetic polyol ester oil-refrigerant mixture at 25 °C. After 14 months of continuous 24/7 testing, the meter required zero drift correction only once.
How to Request a Quote for an R290-Ready Flow Meter
We do not publish a single price online because every R290 skid has its own pipe diameter, flow span and required certification body. Send us the exact specifications and our sales team in Nanjing will return a compliance declaration along with a quotation, normally within 24 hours.
Email: [email protected]
Tel: +86-25-68650347
Whatsapp: +86-25-52155837
WeChat: +86 15365082610
Include these five data points in your message: refrigerant grade (R290 or R1270 blend), operating pressure in bar, fluid temperature in °C, pipe inside diameter in mm or DN, and minimum to maximum mass flow rate in kg/h. If you hold a preferred certificate, state it: ATEX, IECEx, EAC, PESO, INMETRO. We will match the enclosure certification to your destination market.
Frequently Asked Questions
What is the smallest flow rate an R290 Coriolis meter can measure?
Our DN03 sensor reads down to 0.5 kg/h with an accuracy of ±0.2% of rate. It handles the pilot feed lines used in small propane heat pump test rigs.
Can I get a flow meter for vapor R290 return lines?
Yes, but the sizing changes completely. Vapor density is 10 to 30 kg/m³ depending on suction pressure. We use a larger tube size and a low-frequency sensor drive. Specify vapor phase clearly in your request.
What cleaning and drying standard do you follow for R290 service?
We use oxygen-free dry nitrogen purging and vacuum bake-out to remove moisture below 30 ppm. All wetted surfaces are free from oils and chlorinated solvents. The meter arrives capped with stainless steel plugs and a moisture indicator card inside the box.
Does the safety enclosure need an external earth bond?
Yes. We machine an M6 stainless steel earth lug directly on the transmitter housing. Use a minimum 4 mm² copper conductor to the plant earth grid.
What if I need to measure R290 plus a dye or leak detection additive?
Tell us the additive chemistry and concentration. We can switch the wetted O-rings from standard FKM to FFKM or EPDM to avoid swelling. The tube material stays 316L unless hydrogen sulfide traces demand Hastelloy C-22.
