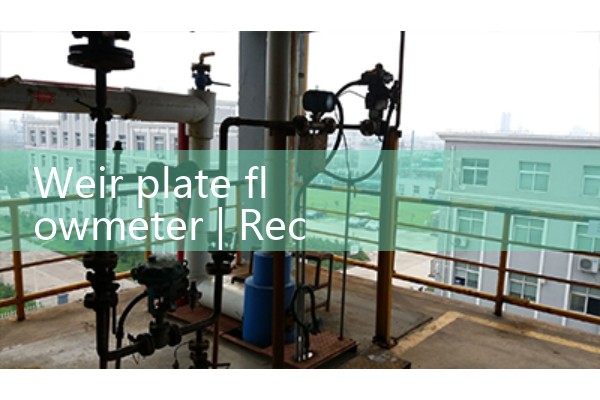

Weir plate flowmeter | Rectangular weir for measuring flow rate

『Weir plate flowmeter』Related information(clamp on meter|electromagnetic meter|venturi meterrotameter|orifice meter|ultrasonic flow meter|mass flow meter|coriolis mass flow meter|coriolis flow meter|magnetic flow meter|magmeter flow meter|magflow flow meter|mag meter flow meter|electromagnetic flow meter|vortex flow meter|turbine flow meter|thermal mass flow meter|thermal flow meter|rotameter flow meter)

1. Calibration and Error Analysis of Water Gauge Weir: Tips for Improving Measurement Accuracy. The calibration of water gauges requires a combination of static and dynamic methods. Error sources include instrument, environment, operation, and flow rate changes. Improving measurement accuracy requires comprehensive optimization from equipment selection, environmental control, personnel training, and measurement time arrangement.

1. Calibration methods for water measuring weirs Calibration of water measuring weirs is divided into two methods: static calibration and dynamic calibration, which need to be operated in combination with laboratory conditions and actual working conditions: static calibration: in the laboratory environment, standard measuring tools (such as high-precision flow standard devices) are used to calibrate the water measuring weirs.

. Determine the deviation and correct the scale or parameters by comparing the measured values of the water measuring weir with the standard values. This method is suitable for detecting systematic errors in the instrument itself, such as inaccurate calibration or sensor drift. Dynamic calibration: In actual working environments, compare and verify the measurement results of the water weir meter with other reliable flow measurement devices such as ultrasonic flow meters and electromagnetic flow meters. Adjust the output of the water weir meter through real-time data to ensure its adaptability to complex working conditions. Dynamic calibration needs to consider practical factors such as flow fluctuations and sediment concentration in water bodies. Calibration precautions: Choose the calibration method according to the measurement requirements: Static calibration is suitable for instrument factory inspection or long-term stability testing, while dynamic calibration is suitable for on-site accuracy verification. Strictly follow the calibration procedures, including preheating of equipment before calibration, recording of environmental parameters (temperature, humidity, etc.), and data collection frequency during the calibration process, to avoid errors caused by operational errors. Regular calibration: It is recommended to perform static calibration every 6 months, dynamic calibration once a year, or calibration immediately after instrument maintenance or significant changes in environmental conditions. Figure: Calibration Scenario of Water Gauge Weir (Combining Laboratory Static Calibration and On site Dynamic Calibration)

2. Analysis of Error Sources of Water Gauge Weir The sources of circular limb errors can be divided into four categories, which need targeted control: instrument errors: design defects: such as the shape of the weir mouth not meeting the standard (thin-walled weirs need to have sharp edges), and insufficient sensor sensitivity. Manufacturing errors: low machining accuracy of components (such as excessive flatness of weir plates), loose assembly leading to leakage. Aging issues: Material deformation after long-term use (such as plastic weir plate creep), sensor zero drift. Environmental error: Temperature effect: Changes in water temperature lead to changes in density, indirectly affecting flow calculation (requiring temperature compensation). Humidity and corrosion: High humidity environments may cause short circuits in electronic components, and corrosive water can damage metal parts. External vibration: Adjacent equipment vibration causes displacement
