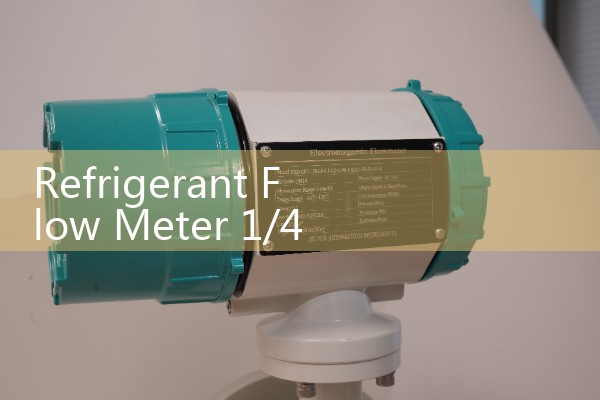

Refrigerant Flow Meter 1/4 Inch: Threaded Compression Links for Laboratory Skids
Quick Answer
A refrigerant flow meter with 1/4 inch threaded compression fittings is the direct fit for most lab-scale chiller test benches and calorimeter skids. Silver Instruments supplies Coriolis mass flow meters in this exact configuration, measuring refrigerant mass flow from 0.2 kg/h up to 600 kg/h with ±0.1% accuracy. The threaded compression links eliminate the need for welding or brazing on thin-wall 1/4 inch tubes, which matters a lot when your skid runs R134a, R290, or CO₂ at 40 to 90 bar line pressure.
Ask our team for a refrigerant flow meter quote: [email protected], Tel: +86-135-1213-1526.
Why Compression Fittings on a 1/4 Inch Line
Lab skids are not production plants. You are moving small refrigerant charges through DN6 or DN8 tubes, not DN50 lines. The 1/4 inch OD tube is the default in university labs, heat pump prototypes, and compressor calorimeters. A threaded compression link lets you connect the meter directly to your instrument panel without a single hot work permit. We see this daily: a test engineer in Melbourne or Dammam needs to swap a sensor at night. With compression fittings, it is a five-minute job using two wrenches. No leak detector screaming the next morning.
In practice, the Silver Automation Instruments micro Coriolis meter comes with 1/4 inch compression fittings as a standard option, rated for 100 bar maximum. The internal tube diameter is 1.8 mm, which matches the speed of sound in liquid R134a and keeps the pressure drop below 0.1 bar at 50 kg/h. Not every supplier understands that on a small refrigerant loop, 0.2 bar pressure drop shifts your evaporation temperature by 0.5 °C. That ruins the COP measurement. We build the meter body specifically for sub-0.3 bar DP at full scale.
What You Actually Measure on a Lab Skid
Most lab skid users do not just read flow. They need three signals in parallel: mass flow rate in kg/h, fluid density in kg/m³, and temperature in °C. A refrigerant blend like R448A has a density of around 1000 kg/m³ at 25 °C saturated liquid. A Coriolis meter gives you density directly, plus a PT100 temperature output. You can verify the subcooling degree on the fly. One power and signal cable, three parameters. That cuts the wiring inside the skid enclosure by half compared to a separate flowmeter, densitometer, and thermowell.
We supply the transmitter with 4-20 mA HART over M12 connector. This is what most lab DAQ systems accept. If your PLC reads Modbus RTU over RS485, we ship the same meter with a different output board, no extra cost. In a recent project for a food-grade chiller lab in Thailand, the customer used 4-20 mA for flow and density, plus a pulsed output to count totalized refrigerant charge per test run. All over one eight-pin plug.
Threaded Compression Links: The Leak-Tight Side of Things
A refrigerant flow meter on a skid must be helium-tight, period. Our factory tests every 1/4 inch unit with helium at 10 bar, sniffing for leak rates below 1x10⁻⁶ mbar·L/s. The compression ferrules are 316L stainless, front and back. The threads are 7/16-20 UNF, matching common Swagelok-compatible nuts. No PTFE tape needed, the metal-to-metal seal does the work. For R290 propane or R32 systems, we add a secondary O-ring groove near the thread root. It is optional, but many ATEX zone 2 skid builders in Europe specify it.
Here is the thing: if you tighten a 1/4 inch compression fitting by feel, you may undertorque it. The meter body includes a small laser-engraved torque spec: 25 N·m for stainless nuts, 18 N·m for brass. A technician in Kuala Lumpur or Lagos just reads the number on the side. Simple.
Vibration and Orientation on a Skid Frame
Compressor skids vibrate. Reciprocating compressors shake at 50 Hz line frequency. A Coriolis mass flow meter is inherently immune to vibration because it measures the phase shift between two oscillating tubes, not the absolute amplitude. But mounting matters. We recommend mounting the meter on a short bracket off the skid frame, not hanging directly from the compressor discharge pip
The meter works in any orientation. However, on a refrigerant liquid line, mounting it with the tubes pointing down helps sweep out any vapor bubbles. On a suction line with some oil mist, position it tubes-up so oil drains back naturally. This is small-diameter stuff; gas purging is easy.
We have seen an Australian test lab run four of these meters side by side on a skid. One for condenser liquid, one for evaporator liquid, one for compressor oil return, and one spare port. All four feeding Modbus to a single LabVIEW PC. No cross-talk, no zero drift after three years.
Real Numbers for a 1/4 Inch Refrigerant Meter
Specifications talk louder than adjectives. For our standard model SICM-1/4-RF, the flow range is 0.2 to 600 kg/h. Density accuracy is ±0.5 kg/m³. Temperature accuracy via integral PT100 is ±0.2 °C. Process connection is 1/4 inch OD compression, 316L. Wetted material is Hastelloy C-22 or 316L, your choice. Max pressure is 100 bar at 20 °C, derated to 80 bar at 130 °C. Fluid temperature range is -50 to 150 °C. Ex approvals: ATEX Zone 1 II 2G Ex ia IIC T6, and IECEx. The transmitter enclosure is IP67 die-cast aluminum.
We stock common variants in Nanjing, and we ship to Singapore, Dubai, Johannesburg, São Paulo within 3 business days via DHL. For a lab skid OEM, we can pre-configure the meter with your tag number, calibration certificate traceable to NIST, and zero-point setting at your fluid temperature. Send us your pressure in bar, temperature in °C, pipe size (DN6 or 1/4 inch), and your target flow range in kg/h. We will return a fixed price with lead time within one working day. Email: [email protected], Tel: +86-135-1213-1526, Whatsapp: 86-135-12131526, WeChat: +86 13512131526.
Lab Automation and Calibration Record
A skid in a certification lab runs hundreds of test cycles per month. Each test needs a mass balance for refrigerant charge. The Coriolis meter doubles as a charge totalizer. You set the batch controller to stop a solenoid valve when the integrated mass reaches, say, 2.500 kg of R513A. The repeatability is ±0.05% of rate, which means the charge variation stays within a few grams over months. That is enough for many ISO 917 and AHRI 210/240 compliance tests.
The meter stores its calibration data onboard. A master meter at Silver Instruments calibrates it on a water loop at 20 °C and 50 °C, then we apply a Reynolds number correction for your refrigerant. The calibration sheet arrives as a PDF with the serial number. We also ship the meter in a hard Pelican-style case if you order the SICM-1/4-RF-KIT, which includes spare ferrules, a Teflon backup ring set, and a 2-meter M12 cable.
FAQ
Q: Can this meter handle two-phase refrigerant at the condenser outlet?
A: The Coriolis meter must see single-phase liquid or superheated vapor. A small sight glass and 1/4 inch subcooler upstream keep the reading stable. We often supply a small coaxial subcooler with the meter for lab skids.
Q: Is the compression fitting compatible with copper tube?
A: Yes. Use a brass ferrule and stainless nut set for copper. The meter threads remain 316L. Specify copper tube during ordering and we include the correct hardware.
Q: What is the minimum measurable flow with R290?
A: With liquid propane at 30 bar, 25 °C, the minimum is 0.4 kg/h. Below that, the signal-to-noise ratio drops. We recommend a 0-10 kg/h range version for ultra-low flow, still with 1/4 inch ends.
Q: Does the meter need an external DC power supply?
A: Yes, 24 V DC, 1 A typical. The transmitter runs on a two-wire loop for HART or a four-wire connection for Modbus. We provide the wiring diagram on a sticker inside the enclosure.
Q: Do you offer on-site commissioning on our skid?
A: We can arrange a technician to visit your site in Southeast Asia, Middle East, or Australia at pre-agreed daily rates plus travel. Contact us with your location and a project timeline.
