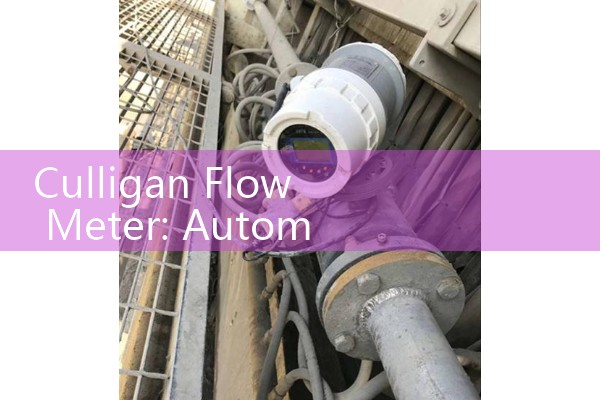

Culligan Flow Meter for Automatic Home Softener Regeneration Telemetry Systems
Quick Answer: A Culligan flow meter measures water volume and sends a pulse signal to the softener control valve. The controller counts pulses and starts regeneration when the total volume reaches the programmed limit. For commercial and industrial softener skids, Silver Instruments supplies pulse output flow meters that fit the same telemetry loop with wider line size coverage and better chemical resistance.
How the Culligan Telemetry Signal Works
Water softener regeneration depends on actual water use. The control valve does not guess. It receives a signal from a flow meter installed on the outlet or inlet line. Each pulse equals a fixed volume, often 0.1 litre or 1 litre. The controller accumulates pulses and compares the total against a user set point. When the value is reached, the controller drives the valve into backwash, brine draw, slow rinse, and fast rinse cycles.
In a home system the flow meter sits in a plastic housing. In commercial systems the same logic applies but pipe sizes increase. A hotel laundry in Manila may run three softener vessels on a DN50 manifold. A dairy plant in Jalisco may use a DN80 line. The flow meter needs to handle continuous flow, pressure spikes, and occasional suspended solids.
Signal Types Used in Culligan Telemetry Systems
Most Culligan residential and light commercial controllers accept pulse input. A reed switch or Hall effect sensor inside the flow meter produces a dry contact pulse. Some larger systems use 4-20 mA analog output to a PLC or SCADA panel. Industrial sites with remote monitoring often add Modbus RTU or HART. The main point is simple. Match the output to the controller input. Do not mix a 24 V DC pulse meter with a 110 V AC counter without an isolator.
Silver Instruments supplies three output options on most water flow meters. The pulse output is passive and draws no loop power. The 4-20 mA output supports two wire loops with HART on request. The Modbus output works over RS485 with device address and baud rate set by the user. This covers retrofit jobs and new skid builds.
Flow Meter Sizing for Softener Regeneration
Line size is not the only factor. Flow range matters more. A home softener may flow 0.2 to 2 m3/h. A commercial reverse osmosis pre-treatment line may flow 10 to 60 m3/h. Select a meter with a turndown ratio that covers the lowest and highest expected flow. An electromagnetic flow meter gives accurate readings from 0.1 to 10 m/s. An oval gear flow meter works better for low flow and brine dosing circuits because it measures volume directly.
For brine line measurement use a small oval gear meter from Silver Instruments, size DN10 to DN25. For main treated water lines use an electromagnetic flow meter, size DN25 to DN200. Pressure rating should be at least PN16. Temperature rating should cover 5 to 40 degrees C for cold water. If the softener handles hot water from a boiler blowdown heat recovery system, specify PT100 and a higher temperature liner.
Common Field Issues We See
We have seen this on customer sites many times. A pulse signal drops because the cable run is too long and the pulse is a dry contact. The controller misses counts. The softener regenerates late or early. The fix is to use a shielded twisted pair cable and keep the run below 50 metres. Add a signal isolator if the line passes near VFD drives or pump starters.
Another issue is scaling. Hard water deposits on turbine blades or electrode surfaces. A magnetic flow meter has no moving parts and ignores non-conductive scale after liner selection. An oval gear meter may need a strainer upstream. In a water treatment plant in Vietnam, a customer replaced a plastic turbine meter with a Silver Instruments electromagnetic flow meter on a DN65 softener feed line. The pulse output stayed stable for
Most engineers skip this part. The flow meter must be installed with straight pipe upstream and downstream. For an electromagnetic flow meter, keep 5 diameters upstream and 3 diameters downstream from elbows or pumps. For an oval gear meter, provide a bypass line for cleaning. Position the meter so air bubbles do not collect in the measuring tube.
Silver Instruments Models That Fit Softener Telemetry
We recommend three groups for softener regeneration projects. The first group is the electromagnetic flow meter series with pulse output and 4-20 mA. It suits main line flow from DN15 to DN200 and line pressure up to 16 bar. The second group is the oval gear flow meter series. It suits brine dosing, small line chemical feed, and low flow measurement down to 0.02 m3/h. The third group is the vortex flow meter series for steam or hot water loops where the softener protects a boiler feed line.
Each meter can be delivered with a factory calibration certificate and IP65 or IP68 enclosure. For outdoor skid installations in the Middle East, specify the aluminum or stainless steel housing and a sunshade. In Southeast Asia, choose a polyurethane liner and stainless steel electrodes for groundwater with low pH.
Retrofit a Culligan Flow Meter in Four Steps
First, check the old meter output. Many Culligan meters use a dry contact pulse. Note the K-factor or pulse per litre value. Second, confirm the pipe size and flow range. Third, select a Silver Instruments meter with the same output and a suitable process connection. Threaded connections work for DN15 to DN40. Flange connections work from DN50 upward. Fourth, wire the meter to the controller with shielded cable. Set the same K-factor in the controller if it is programmable. If not, tell us the required pulses per litre before production. We can set the output in the factory.
Send us your pipe size in DN, flow range in m3/h, pressure in bar, temperature in degrees C, and required output signal. We will reply with a model and a quote within one working day. Tel: +86-25-68650347. Whatsapp: +86-25-52155837. WeChat: +86 15365082610.
FAQ
Can a Silver Instruments flow meter replace a Culligan flow meter?
Yes. Most replacements need the same pulse output and K-factor. Check the old meter label or send us a photo. We match the flow range and process connection.
What signal does a Culligan softener flow meter use?
Most home and light commercial Culligan systems use a reed switch or Hall effect pulse. Larger industrial softeners may use a 4-20 mA input to a PLC or a remote telemetry unit.
Which flow meter type is best for hard water and brine?
For hard water main lines use an electromagnetic flow meter. It has no moving parts. For brine or salt solution use an oval gear flow meter because the liquid may have low conductivity and the meter measures volume directly.
How do I size a flow meter for a commercial softener skid?
Size by flow velocity, not pipe diameter alone. Provide the minimum and maximum flow rate in m3/h. For a DN50 line flowing 5 to 15 m3/h, a DN50 electromagnetic flow meter works well. For a DN80 line flowing 30 to 60 m3/h, select a DN80 meter.
What details do you need for a fast quote?
Give us the pipe size in DN, flow range in m3/h, pressure in bar, temperature in degrees C, output signal, and process connection type. If the water has chlorine, ozone, or low pH, add that too. We will recommend a liner and electrode combination.
Silver Instruments ships to Southeast Asia, Oceania, Latin America, Africa, and the Middle East. We supply industrial flow meters and process instruments to water treatment contractors, OEM skid builders, and end users. For Culligan softener telemetry upgrades and replacements, ask for a pulse output flow meter with a factory set K-factor.
